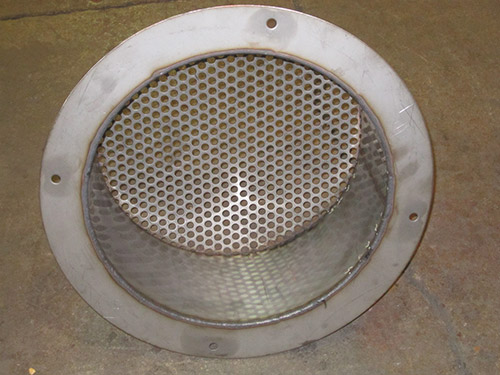

CUSTOM FABRICATED STAINLESS STEEL PREFILTER FOR THE WASTEWATER INDUSTRY
A client in the wastewater industry was in need of a stainless steel prefilter and came to Harmony Metal Fabrication to manufacture this component. To produce this prefilter, we began with a customer-supplied 3D CAD drawing which gave us the dimensions for the prefilter. Using 304 stainless steel, we used plasma cutting and metal forming technology along with CNC punching, rolling, and MIG and TIG welding to assemble the unit. The finished dimensions measured 24″ by 24″ and the material was 3/16″ thick, weighing 35 lbs., with a glass bead finish. Our turnaround time for this project was two weeks and we worked to tolerances of ±1/16″ throughout the fabrication processes.
Our experienced team at Harmony Metal Fabrication can handle your most intricate fabrication projects. More information on this steel fabrication project can be found in the table below or contact us directly.
Custom Fabricated Stainless Steel Project Highlights
| Product Name | Stainless Steel Prefilter |
| Product Description | This stainless steel prefilter is used within a wastewater application. |
| Custom Fabrication Capabilities Applied/Processes | Plasma Cutting Forming CNC Punching Rolling MIG & TIG Welding |
| Equipment Used to Manufacture Part | Press Brake Press Brake CNC Punch Press Plate Roll Welder |
| Overall Part Dimensions | Material Thickness: 3/16" Length: 24" Width: 24" |
| Tightest Tolerances | ±1/16" |
| Material Used | 304 Stainless Steel |
| Material Finish | Glass Bead |
| In Process Testing/Inspection Performed | Final Inspection |
| Estimated Part Weight | 35 lbs |
| Industry for Use | Wastewater |
| Turnaround Time | 2 Weeks |
| Standards Met | 3D CAD Drawing |
